Stratford DLR Station, East London

Bespoke Curved Platform Canopy

Project: Stratford DLR Station, East London
Value: £610,000
Product: Bespoke curved platform canopy
Coverage: 1,050 metres2
Programme: 40 weeks

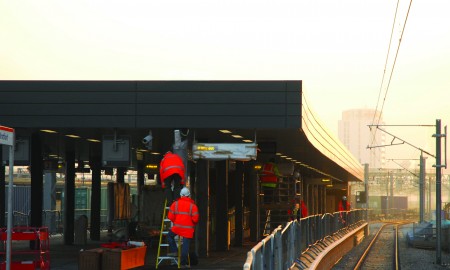

Passenger platform structure and canopy to the newly commissioned platform extension works at Stratford Station. This challenging design required the provision of cover and protection to a busy public transport location. The topography of the site dictated that the canopy was curved in plan to match the track layout contours and was to incorporate a vast array of public communication equipment all housed in high-end architectural finishes. The inclusion of the electrical systems combined with the location and function of the canopy demanded high end design solutions to achieve a simple, safe maintenance regime to ensure maximum accessibility and minimum delay to any future works.

  • Galvanized mild steel support structure
  • Aluminium “King-zip” standing seam roof system
  • Rhein-zinc fascia and closure flashings
  • Aluminium “secret-fix” soffit system
  • Concealed syphonic guttering system – internally drained
  • Maintenance friendly removable soffit system
  • LED lighting system
  • Real-time information and public address system
  • Fall-restraint system to man access roof
