London Luton Airport, Bedfordshire

Bespoke Walkway Canopy and Stairwell

Project: London Luton Airport, Bedfordshire
Principal Contractor: Lagan Construction
Value: £195,000
Product: Bespoke walkway canopy and stairwell
Size/area: 50 metres long x 4 metres wide (total area: 200 metres2)
Programme: 28 weeks

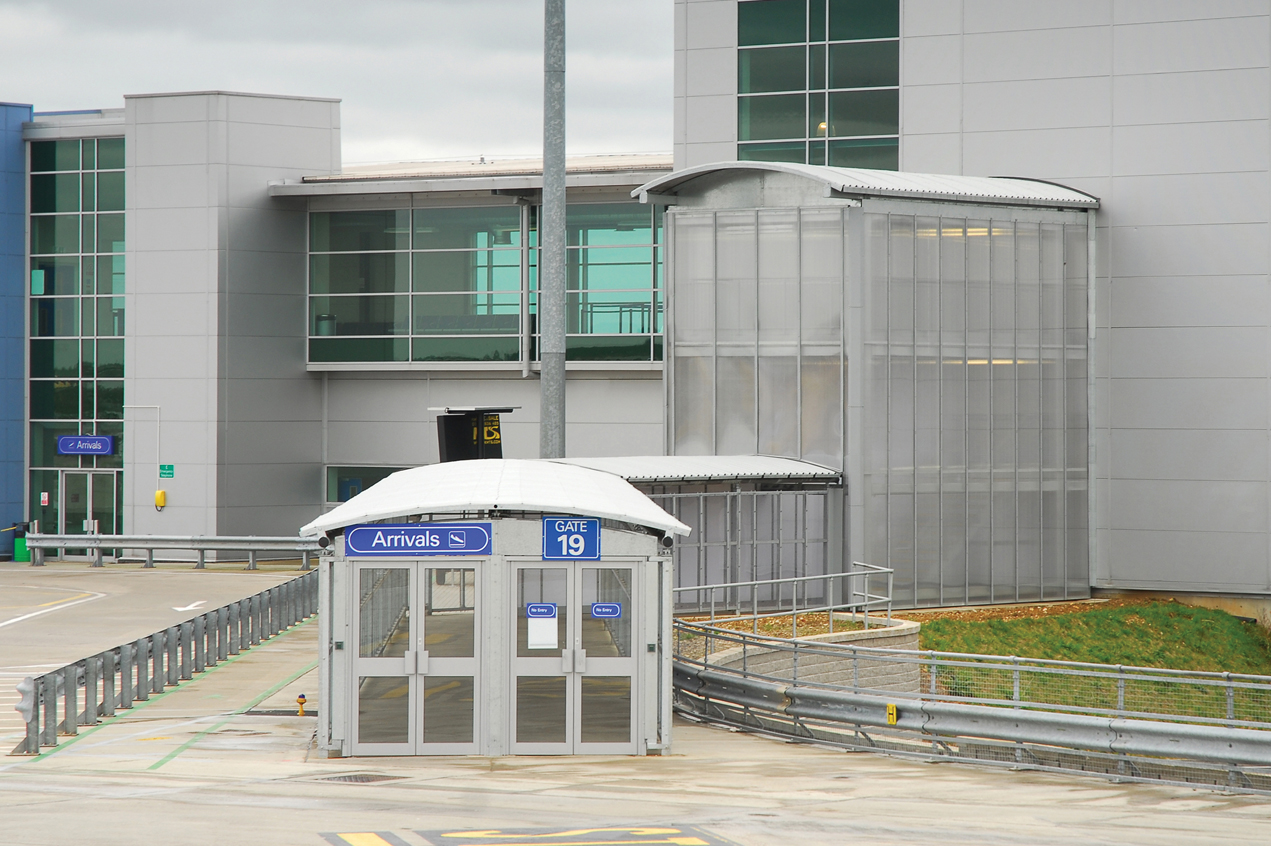

Contracted by Lagan Construction, this Broxap design & build passenger link allows the successful segregation of arrival and departure passengers from the main building to airside pickup points. Automated security doors at both ends of the walkway, a floor-to-ceiling internal security screen and the inclusion of a multi-level stairwell structure ensure that passengers are kept completely separated. A larger secondary structure, covering the stairwell, was flashed into existing building cladding fabric.

  • Galvanized mild steel support structure
  • Trapezoidal mild steel coated roof sheet

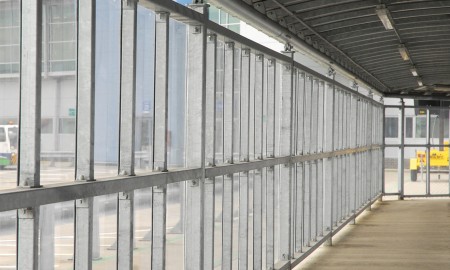

  • 5mm thick PETg clear UV stabilised sheet to external
    walkway sides
  • 5mm thick PETg Opaque UV stabilised sheet to inner
    walkway corridor

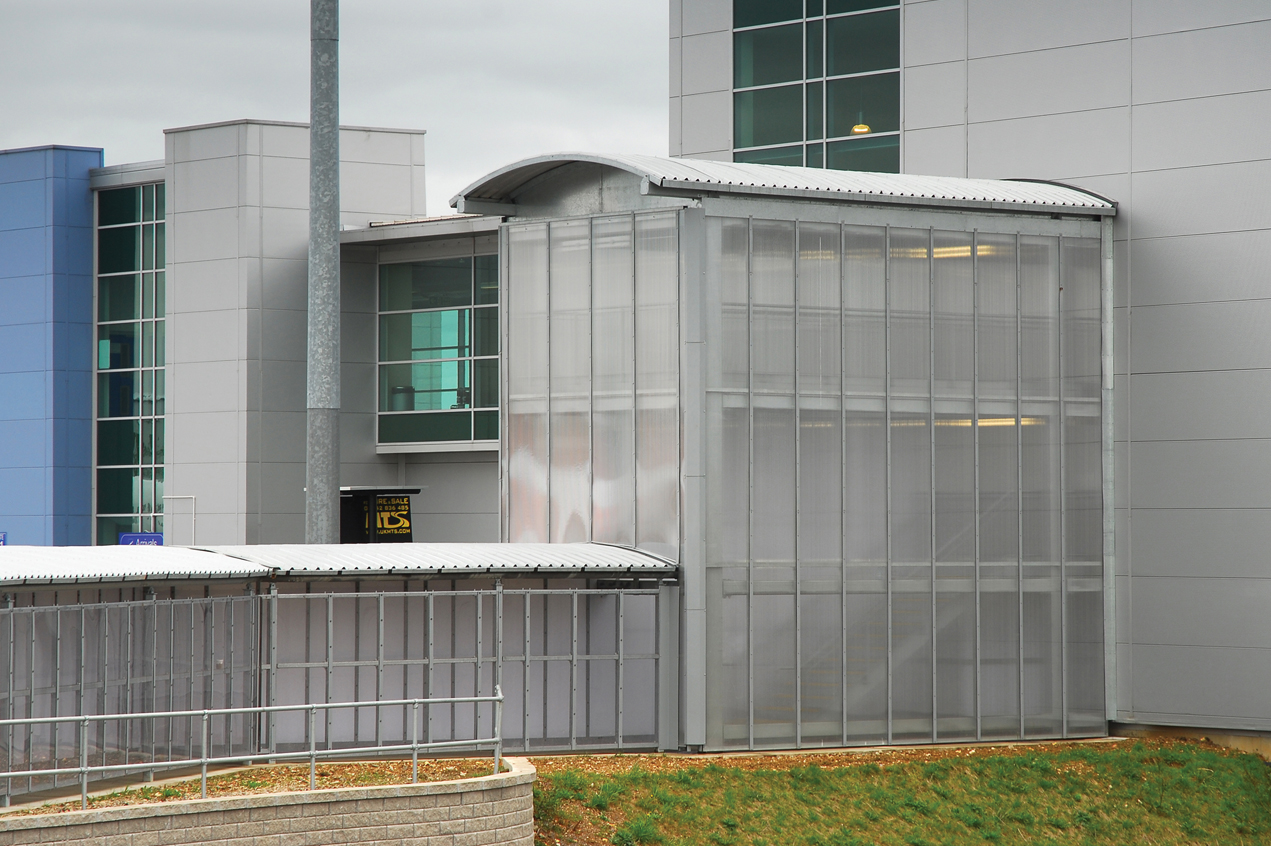

  • 16mm thick clear multi-wall polycarbonate sheet
    stairwell cladding
  • Galvanized mild steel durbar plate treads to stairs
    and landings
  • British Standards Part M and Part K compliant stairs
  • Full-length internal security screen and stairwell cladding
  • Electrically operated security door
  • Internal lighting to both stairwell and corridor
  • Secondary structure fully flashed/sealed into existing building
  • Robust design with minimal maintenance requirement
  • Air-gaps to top and base of outer faces
