City Cruise Terminal Forecourt, Southampton

Glazed Walkway Canopies

Project: City Cruise Terminal Forecourt, Southampton
Principal Contractor: Broxap Limited
Value: £285,000
Product: Glazed walkway canopies
Coverage: 880 metres2
Programme: 24 weeks

Working as Principle Contractor for Associated British Ports, Broxap was tasked with the design and installation of five contemporary glazed canopies for passenger departures outside the City Cruise Terminal building. In addition to the canopies and associated ground works, a degree of other site activities including; removal and disposal of existing furniture; subterranean drainage improvements and interfacing; traffic management products; and road markings, were all undertaken and performed by Broxap. All working areas were hoarded off by Broxap Ltd to ensure safe working environments at the passenger departure area, which remained open during the works.

  • Galvanized mild steel structure

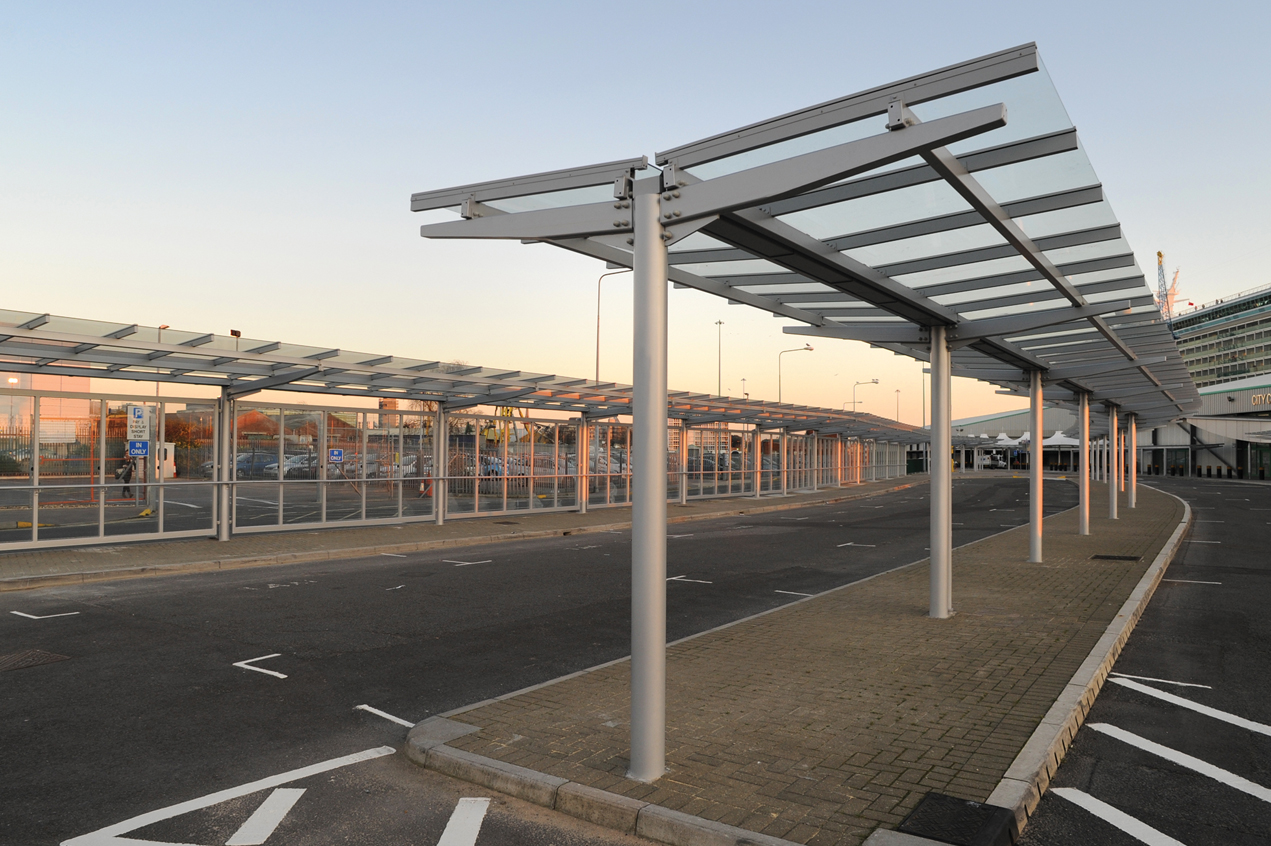

  • Cantilevered design

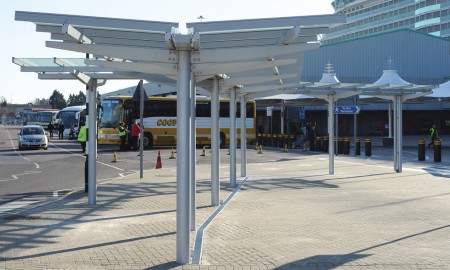

  • Gullwing design, and
  • Asymmetric/off-centred Gullwing design
  • 8.8mm laminated glass roof
  • Aluminium glazing patent glazing bars

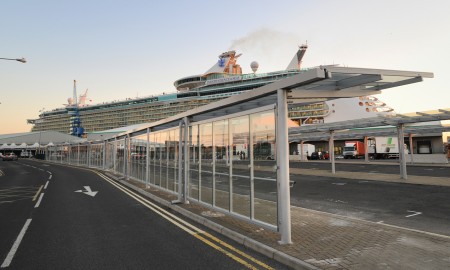

  • 10mm toughened rear glazed screen to 2 canopies
  • Challenging changes of direction
  • Integral guttering and rainwater pipe
