Abbey Road DLR Station

Railway Platform Canopy

Project: Abbey Road DLR Station
Value: circa £385,000
Product: Railway platform canopy
Coverage: 480 metres2
Programme: 40 weeks

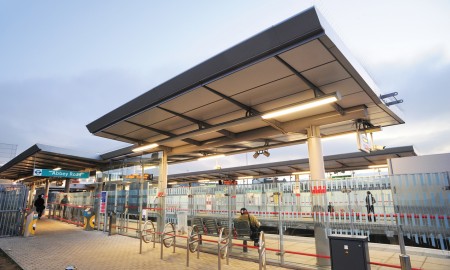

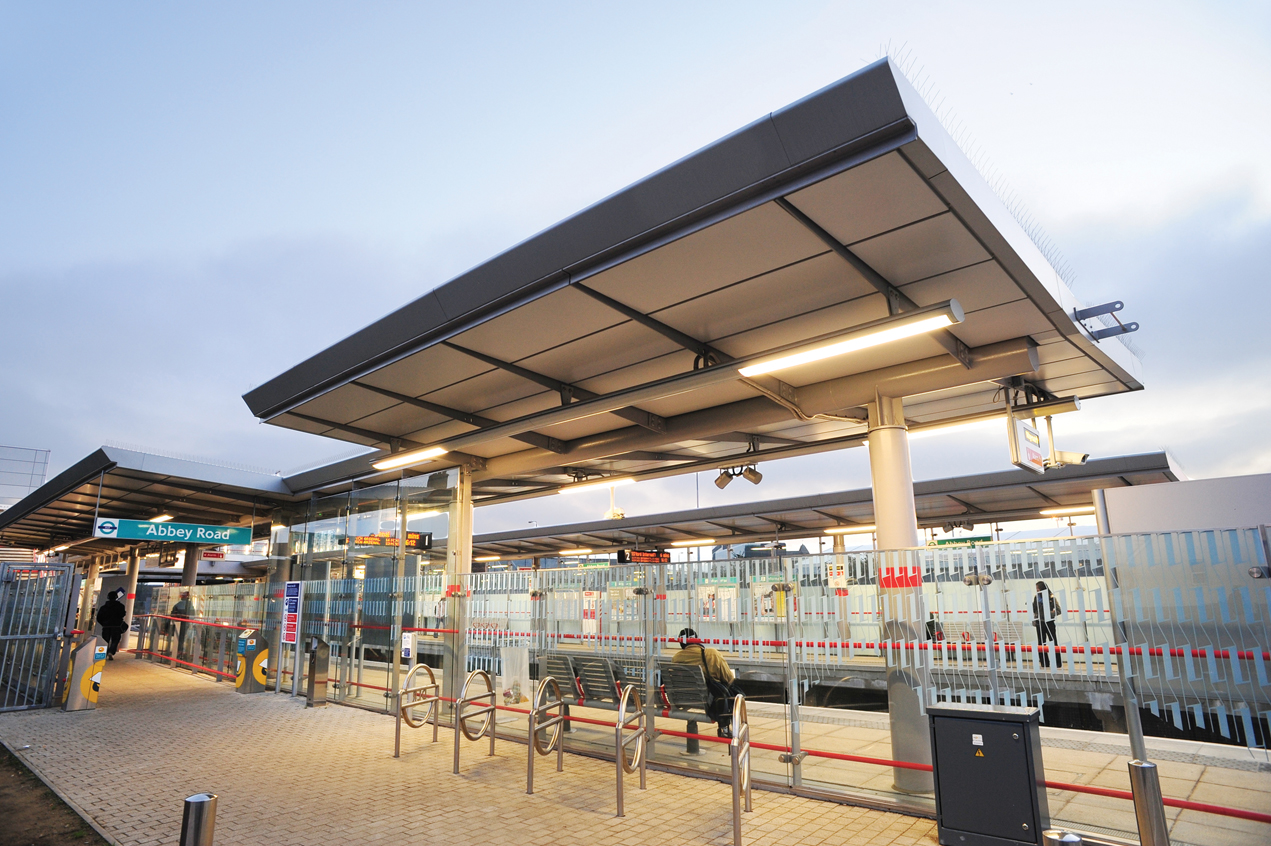

As Phase 2 of 5 on a multi-million pound station development the double cantilevered design concept shown on the previous page was re-engineered and adapted to create two independent structures installed on adjacent curved platforms. The same architectural finishes were maintained across the various stations to ensure the continuity of look, feel and aesthetics throughout the lines development.

  • Galvanized mild steel CHS columns and spine beam
  • Galvanized mild steel Structural Tee Cantilever Arms
  • 2mm pressed Aluminium Soffit Panels
  • ‘Ashzip’ Standing Seam Aluminium Roofing System
  • Hidden gutter and downpipe, internally drained through Main CHS Columns
